Dual-Frequency GNSS GPS Module with L1+L5 Band for Centimeter-Level Positioning Accuracy and Customizable Interfaces

Product Categories

Shenzhen Youwei Communication Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Place of Origin : Guangdong, China

Model Number : YW-16164G3

MOQ : 100

Price : $4

Dimensions : 16x16x4 mm

Tracking Sensitivity : -162 dBm

Locating Accuracy : 2.5m (CEP)

Update Rate : 1Hz~10Hz

Velocity : 515 m/s

Velocity Accuracy : 0.1m/s (unaided)

TTFF Hot Start : 1 second

TTFF Warm Start : 28 seconds

TTFF Cold Start : 30 seconds

Acquisition Sensitivity : -160 dBm

Cold Start Sensitivity : -147 dBm

Baud Rate : 9600 bps

Timing Accuracy : 25 ns RMS

Power Supply : 3.3V ~ 5V

Power Consumption : 30mA (acquisition)

Working Temperature : -40°C to 85°C

Antenna Type : patch ceramic

Contact Now

Parameters of YW-16164G3 Global Positioning System Module

Item	Parameters
Part No.	YW-16164G3
Chipset	As per order
Frequency	Optional
Number of Channels	Optional
Positioning Accuracy	Customized
Velocity	515 m/s
Velocity Accuracy	Without aid : 0.1m/s DGPS: 0.05m/s
TTFF	Hot start: 1 second typical Warm start: 28 seconds typical Cold start: 30 seconds typical
Sensitivity	Tracking Sensitivity: -162 dBm Acquisition Sensitivity: -160 dBm typical Cold Start:-147dBm
Baud Rate	9600 bps (default)
Max Navigation Update Rate	1Hz (default), maximum 10Hz
Timing Accuracy	25 ns RMS
Interface Options	UART, I2C, SPI, USB
Data Output Format	NMEA 0183
Power Supply	3.3V ~ 5V
Power Consumption	30mA acquisition, 24mA tracking
Working Temperature Range	-40°C to 85°C
Antenna Type	patch ceramic antenna
AGPS	Supported
Dimension	16164mm
Package Type	SMD

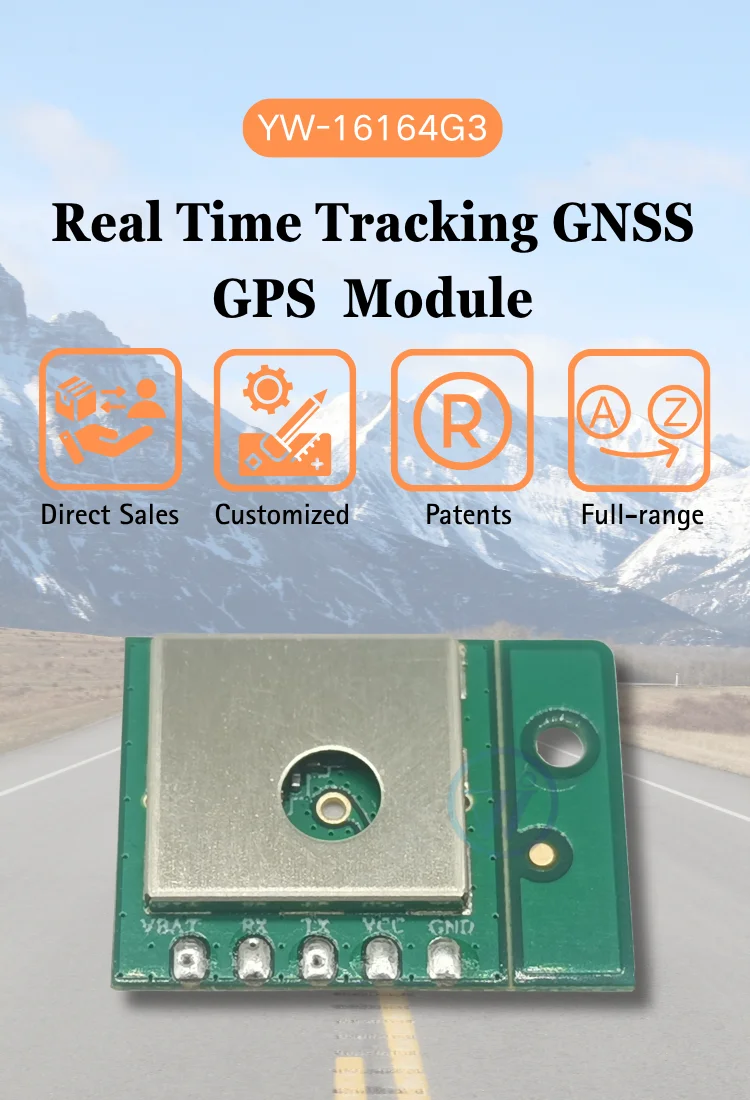

Pin Assignment of YW-16164G3 GPS Positioning Module

Pin No.	Pin name	I/O	Description	Remark
1	GND	O	power output ground
2	VCC	I	Main power supply to the engine board	Voltage range: 3V~5V
3	TX	O	Data output
4	VBAT	P	Ground
